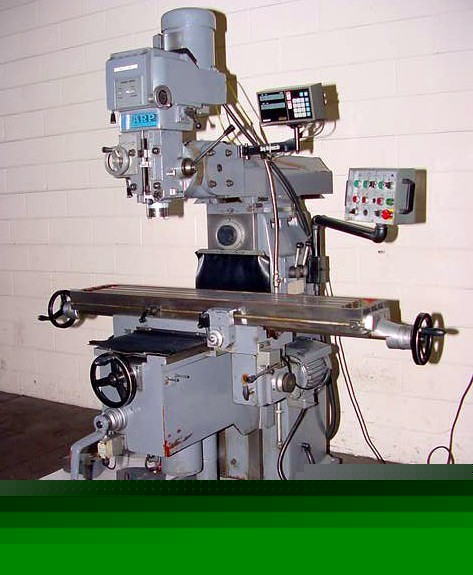

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Grinders, Hones, Finishing * Ovens, Furnaces & Environmental SHARP VH-25 HORZ/VERTICAL MILL w/SONY DRO, POWER FEEDS SHARP VH-25 HORZ/VERTICAL MILL w/SONY DRO, POWER FEEDS SHARP VERTICAL HORIZONTAL MILL MODEL VH-25, S/N: 81090186 MFG: 1992 WORKING SURFACE .............. 10" X 56" LONGITUDINAL TRAVEL .......... 36" CROSS TRAVEL ................. 16-1/2" LONGITUDINAL FEEDS (12) ...... 7/8-27 IPM LONGITUDINAL RAPID TRAVERSE .. 82-1/2 IPM VERTICAL KNEE TRAVEL ......... 17-1/2", RAM TRAVEL ................... 18-1/2" SPINDLE MOTOR (VERTICAL) ..... 4 HP SPINDLE MOTOR (HORIZONTAL) ... 5 HP VERT SPINDLE SPEEDS, INF VAR . 60-4,500 RPM SPINDLE SPEEDS (HORIZ) (6) ... 80,120,230,380,700,1350 RPM SPINDLE TAPER , VERTICAL ..... NST #40 SPINDLE TAPER, HORIZONTAL .... NST #40 POWER QUILL FEEDS (3) ........ 0.0016, 0.003, 0.006 IPM QUILL TRAVEL ................. 5" QUILL DIAMETER ............... 3-1/2" TURRET SWIVEL ................ 360 DEG HEAD TILT, FRONT AND BACK .... 45 DEG HEAD TILT LEFT AND RIGHT ..... 90 DEG SPINDLE CENTER TO COLUMN (MIN-MAX) ........ 12-13/16" - 30-11/16" SPINDLE NOSE TO ABLE (MIN-MAX) SPINDLE CENTER TO TABLE (MIN-MAX) SPINDLE CENTER TO BOTTOM OF OVERARM SPINDLE TO NOSE COLUMN ...... 15/16" WIRING VOLTAGE .............. 220V/3/60 NET WEIGHT .................. 4,200 LBS MACHINE DIMENSIONS .......... 82" X 75" X 93" - 2 AXIS SONY MAGNESCALE DIGITAL READOUT TO .0002" - LONGITUDINAL TABLE POWERFEED WITH RAPID TRAVERSE - ARBOR WITH (2) ARBOR SUPPORTS FOR THE HORIZONTAL SPINDLE Machine Location: HARRISON, NJ Click Here For More Sharp Machines Click Here For More Mills - VERTICAL MILLS - VERTICAL MILLING MACHINES(s) Call David at (***) 873-6224 ext 7570 Call Alex at (***) 873-6224 ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. (We do not proofread any ads submitted by members) |
monica-nicholson@desmoines-classifieds.com (Monica Nicholson) for more information. Your emails will be instantly forwarded to the poster's private address.
