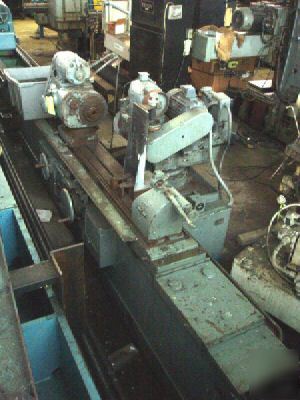

18" x 72" CINCINNATI-MILACRON UNIVERSAL New 1950, Serial No 3U6F1W-12, Ltr ER, Internal Grinding Spindle Attachment (Swing-Down Type) Hydraulic Longitudinal Table Feed Swing Over Table, Maximum.............. 18.9375" Grinding Diameter, Minimum............. 0" Grinding Diameter, Maximum............. 18" Distance Between Centers, Nominal...... 72" Grinding Wheel Diameter, Standard...... 14" Grinding Wheel Width, Standard......... 2" Grinding Wheel Hole Diameter........... 5" Table Swivel Taper Forward............. 3" TPF Table Swivel Taper Back................ 1" TPF Table Swivel Angle Forward............. 7-DEGREES Table Swivel Angle Back................ 2-DEGREES Headstock Swivel Forward............... 90-DEGREES Headstock Swivel Back.................. 30-DEGREES Workhead and Tailstock Center Tapers... #10 B&S Workhead Spindle Speeds, Range......... 25 to 225 RPM Table Longitudinal Feeds, Infinite..... 3 to 240 IPM Automatic In-Feed at Table Reversal.... .0004 to .014 IPR Grinding Wheelhead Spindle Motor....... 5 HP/1740 RPM Internal Grinding Attachment, HP/RPM... 2 HP/3450 RPM Hydraulic Motor, Horsepower/RPM........ 1.5 HP/1165 RPM Floor Space Required, L x D............ 19'9" x 5'9" Weight, Approximately.................. 13000 LBS PRICE: F.O.B. OUR WAREHOUSE........... $7,500.00 All machines/equipment subject to prior sale. (We do not proofread any ads submitted by members) |
