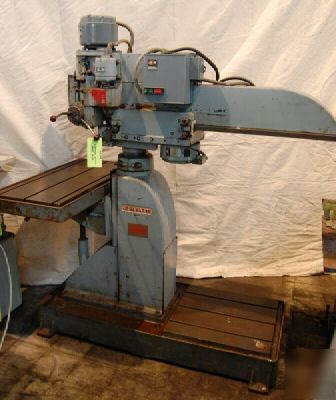

2'6" JOHANSSON SLIDING RAM-TYPE RADIAL DRILL Arm Length............................. 2'6" Column Diameter........................ 6" Drilling Capacity, Cast Iron........... 1.75" Drilling Capacity, Mild Steel.......... 1.5" Vertical Arm Travel on Column.......... 12" Vertical Table Travel on Column........ 14.5" Vertical Spindle Travel in Head........ 6" Spindle-Radius, Minimum................ 11" Spindle-Radius, Maximum................ 35" Spindle-Nose to Table, Minimum......... 4" Spindle-Nose to Table, Maximum......... 31" Spindle-Nose to Base, Minimum.......... 35" Spindle-Nose to Base, Maximum.......... 53" Spindle-Center to Column, Minimum...... 2.5" Spindle-Center to Column, Maximum...... 30" Table Working Surface, W x L........... 20" x 40" Base Working Surface, W x L............ 20.5" x 24" Quill Diameter......................... 2.75" (8) Spindle Speeds, Range.............. 105 to 1200 RPM (8) Spindle Feeds, Range............... .006 to .048 IPR 2-Speed Main Motor, Horsepower......... 2/1 HP Weight, Approximately.................. 2400 LBS PRICE: F.O.B. OUR WAREHOUSE............ $2,450.00 All machines/equipment subject to prior sale. (We do not proofread any ads submitted by members) |
N_dalton@desmoines-classifieds.com (Nikki Dalton) for more information. Your emails will be instantly forwarded to the poster's private address.
