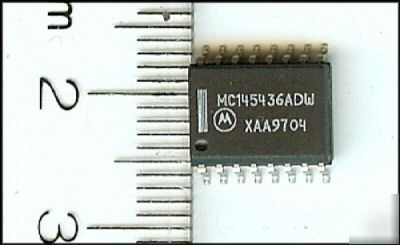

Now over 1,300 items in our Store! The following spec sheet is provided by the manufacturer. It may cover several different components and/or versions. I am only offering the part in the heading and picture. The MC145436A is a low–power and improved input sensitivity version of the MC14LC5436. The MC145436A is a silicon gate CMOS LSI device containing the filter and decoder for detection of a pair of tones conforming to the DTMF standard with outputs in hexadecimal. Switched capacitor filter technology is used together with digital circuitry for the timing control and output circuits. The MC145436A provides excellent power line noise and dial tone rejection and is suitable for applications in central office equipment, PABX, and keyphone systems, remote control equipment and consumer telephony products. The MC145436A offers the following performance features: Detects All 16 Standard Digits Uses Inexpensive 3.58 MHz Crystal Provides Guard Time Controls to Improve Speech Immunity Output in 4–Bit Hexadecimal Code Built–In 60 Hz and Dial Tone Rejection Pin Compatible with SSI–204, MC145436, and MC14LC5436 Functional and Applicational Compatible with MC145436 and MC14LC5436 (We do not proofread any ads submitted by members) |
