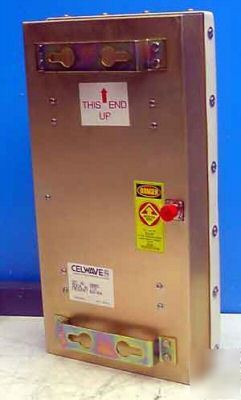

NEW CELWAVE LOCALIZER DIRECTIONAL PANEL ANTENNA This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! Celwave Localizer Directional Panel Antenna This 8 dBd gain, 60 degree directional panel antenna features a 25 degree down-tilt for signal saturation and a 30 dBd null on horizontal to provide maximum "splash" protection. It has been specially designed to exceed the performance of traditional antennas. Its high, front-to-back ratio effectively isolates interferences from adjacent cells and is nearly impervious to tower changes. Because its elements are almost completely shielded within the grounded reflector, the "Localizer" is less susceptible to damage from low amplitude and proximity lightning strikes. A weather resistant radome ensures the antenna's use in all climates and hostile environmental conditions. Specifications: Specifications * Frequency Band: Trunking/SMR (806-824, 851-869 MHz), Cellular (824-849, 869-894 MHz) * Horizontal Pattern: Directional * Antenna Type Panel Vertical Polarized * Electrical Down Tilt Option Fixed * Frequency Range, MHz 824-894 * Electrical Down-tilt, deg 25 * Horizontal Beamwidth, deg 60 * Mounting Hardware 10238 Clamp Set * Rated Wind Speed, km/h (mph) 160 (100) * Vertical Beamwidth, deg 35 * Front-To-Back Ratio: dB 25 (30 Typical) * Maximum Power Input, W 250 * Lightning protection Direct Ground * 3rd Order IMP @ 16 x 41 dBm, dBm < -100 * Dimensions (H x W x D): 508mm x 264mm x 127mm (20†in. x 10.375†in. x 5†in.) * Weight w/o Mtg. Hardware, kg (lb) 4.5 (10) * Radiating Element Material 6061-T6 Aluminum Alloy * Radome Material Weather Resistant Plastic * Reflector Material 5052-H32 Irridited Aluminum * Max Wind Loading Area, m² (ft²) 0.134 (1.44) * Maximum Thrust @ Rated Wind, N (lbf) 256 (57.6) * Side Wind Loading Area, m² (ft²) 0.065 (0.7) * Side Thrust @ Rated Wind, N (lbf) 124 (27.8) * Extreme down-tilt – localizes energy in MSA or micro-cells to prevent overlap into adjacent cells. * High front-to-back ratio – effectively isolates signals from adjacent cells. * Weather resistant radome minimizes corrosion, assures reliable operation in icing, salt air and acid rain conditions. * Shielded elements – less susceptible to damage from low amplitude lightning. * Unobtrusive – easily blends with architecture, can be painted to match. (We do not proofread any ads submitted by members) |
