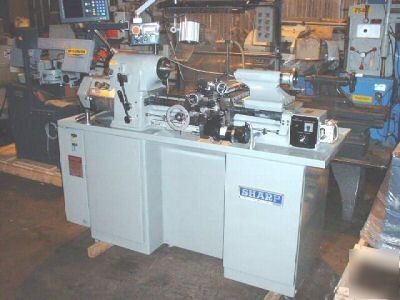

Welcome to Select Machine Tool q One (1) Each – SHARP Model 1118H Toolroom Lathe w/ Digital Variable Speed § High Speed Spindle (Infinitely Variable 130-4,000 RPM) § Accuracy Within 50 Millionths TIR § Independent Electric Feed Control On Carriage And Cross Slide § Quick Change Inch/Metric Gearbox With (36) Changes § Double Angular Contact Bearings Support Spindle § Quick-Action Compound Slide For Threading § Hardened And Ground Bed Ways § Turcite Coating On Carriage And Bed § Adjustable Thread Length Control Stops With Fine Adjustment § Hardened And Ground Lead Screws § 5C Collet Closer and Collet Holder § Distance Between Centers 18†§ With Round 5C Collets 1-1/6†§ With Hexagon 5C Collets 7/8†§ With Step Chucks 1-1/6†- 6†§ Spindle Speed Range (Digital Variable Speed) 130 - 4000 RPM § Spindle Nose Taper (Inside) 5C (10°) § Spindle Nose Taper (Outside) 4° § Quick-Action Compound Slide Travel 0.1†§ Carriage Power Feed Range 5/16†x 7†§ Cross Slide Power Feed Range 5/16†x 4†§ Leadscrew Pitch, Diameter 8 TPI, 1†§ Metric Threads [36] 0.275 - 2.7 § Tailstock Spindle Diameter 1.358†§ Tailstock Spindle Taper MT#2 § Tailstock Spindle Travel 3.75 § Main Motor (220V, 3Ph, 60Hz) 5Hp, 2-Speeds § Coolant Pump Motor (220V, 3Ph, 60Hz) 0.25Hp § Feed Motor (DC) 75 Watt, 110 Volt § Weight (Approximate) 2300 lbs. If you are a Virginia resident 5% state sales tax will be added. User agrees to indemnity and hold harmless Seller of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agents to follow instructions, warnings, or recommendations available from the original manufacturer, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. (We do not proofread any ads submitted by members) |
O.burch@desmoines-classifieds.com (Oscar Burch) for more information. Your emails will be instantly forwarded to the poster's private address.
