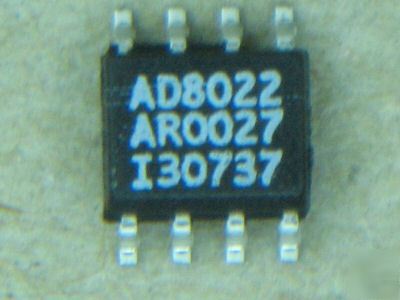

Low power amplifiers provide low noise and low distortion, Wide supply range: +5 V, ±2.5 V to ±12 V voltage supply Low power consumption: 4.0 mA/Amp Lower total noise (insignificant input current noise 2.5 nV/?ãHz voltage noise @ 100 kHz 130 MHz bandwidth (-3 dB), G = +1 High output swing: ±10.1 V on ±12 V supply Low offset voltage, 1.5 mV typical Receiver for ADSL, VDSL, HDSL, and proprietary Low noise instrumentation front end The AD8022 consists of two low noise, high speed, voltage quiescent current, yet has only 2.5 nV/?ãHz of voltage noise. These dual amplifiers provide wideband, low distortion performance, with high output current optimized for stability when driving capacitive loads. Manufactured on ADI’s high voltage generation of XFCB bipolar process, the AD8022 operates on a wide range of supply voltages. The AD8022 is available in both an 8-lead MSOP and an 8-lead SOIC. Fast over voltage recovery and wide bandwidth make the AD8022 ideal as the receive channel front end to an ADSL, VDSL, or proprietary In an xDSL line interface circuit, the AD8022’s op amps can be configured as the differential receiver from the line transformer or as independent active filters Be sure to add me to your favorites list! (We do not proofread any ads submitted by members) |
