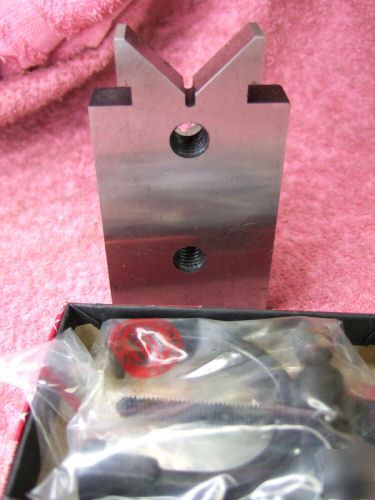

STARRETT 567 V-BLOCK AND CLAMP BOTH NEW 1-7/8" WIDE x 1-7/8" TALL x 3.5" LONG AND CAPACITY OF 1-5/16". THE V-BLOCK HAS (4) TAPPED HOLES IN FIXED JAWS FOR 3/8 X 16 SCREWS TO ATTACH AS NEEDED. EXCELLENT TOOL WITH LIGHT STAINING FROM STORAGE IN A GERSTNER BOX HERE. OUT OF BOX AND PAPER ONLY TWICE!!!! VERY WELL MADE TOOL THAT WORKS VERY WELL BEING VERY HEAVY AND WELL MADE SEE PICS AND ASK QUESTIONS IF NEEDED eddie.crosby@desmoines-classifieds.com CURRENT LIST ON THIS TOOL IS $230.00!!!!! SAVE SOME $$$$ HERE!!! SPECS BELOW FROM L.S. STARRETT CATALOG. Starrett V-blocks come in a variety of styles to suit the numerous requirements of machinists. They are for general shop use and layout work, as well as for holding stock in place during light-duty milling, drilling, and grinding operations. All the clamp screws have a hole to help secure the workpiece. This is an improved V-block and clamp which has these very versatile features: * Can be used on its base, on the end or on either side * The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting * The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc. * A clearance hole for drilling or removing dowel pins is provided in the block * The block has four 3/8-16 tapped holes, two in the base and one on each side for attachment to an angle iron. The angle iron holding the block can then be attached to a lathe faceplate or held by a magnetic chuck * The block is hardened and precision ground. The sides are parallel and the V is central and parallel to the sides and base * The clamp is a strong forging Questions? Contact us eddie.crosby@desmoines-classifieds.com (We do not proofread any ads submitted by members) |
