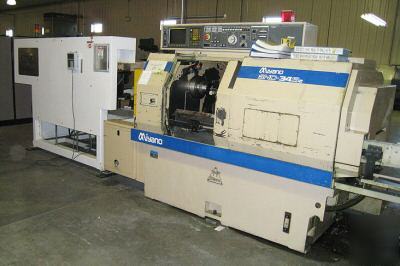

MIYANO MODEL BND-34S2 3-AXIS CNC TURNING CENTER WITH SUB-SPINDLE Inner Dia. of draw tube 1.417" Chucking system Hydraulic rotary cylinder Spindle speed range 170 To 5000 RPM Spindle motor (variable speed AC) 7.5 HP (5.5 kW) Spindle speed Infinitely variable Max. indexing clearance 19.291" X-Axis servo-motor Fanuc Mdl O/AC0.68HP Z-Axis servo-motor Fanuc Mdl 5/AC1.1 HP Inner dia. of draw tube 1.023" Chucking system Hydraulic rotary cylinder Spindle speed range 170 To 5000 RPM Spindle motor (variable speed AC) 2.87 HP Spindle speed Infinitely variable Max. slide stroke (B-Axis) 12.8" Rapid traverse rate (B-Axis) 472 IPM B-Axis servo-motor Fanuc Model 5 AC/ 1.1 HP Pump motor AC 200V 2 HP(1.5 kW)4P Insufficient oil detection method Level switch (standard) Distribution method Resistance type distribution method Pump motor Ac 22V 0.53 HP (0.4kW)2P Pump capacity 52 Gal/Min. (200l/Min.) Floor space without bar 62-3/8" x 97-13/16" Voltage AC 200/220V + 10%-15% Cycle50/60 Hz +/- Hz 3 Phases Number of revolving tool installed Max. 4 Rotation speed of revolving tool 133 to 4000 RPM Motor for revolving 0.64/0.53 HP 1.47/1 HP AC 0.48/0.4 kW AC 1.1/0.75 kW Dividents Indexing angle 7.5 Deg. Misc. tooling including 3 live tools CNC Enhancements 400 Magazine type bar feeder (We do not proofread any ads submitted by members) |
