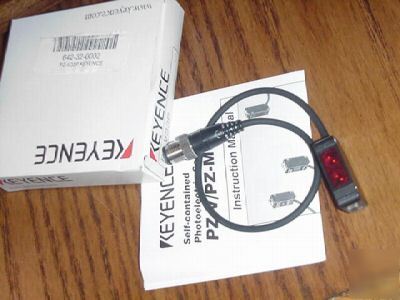

Photoelectric Sensor: PZV/M Series, 1 Turn Trimmer * Response time 1.5 ms max. 1 ms max. (1.2 ms max. with alternate-frequency type, 2 ms max. with M65 only *1.) * Operation mode LIGHT-ON/DARK-ON (selectable by wiring) * Indicators Output: Orange LED, Stable operation: Green LED * Digital monitor - 7-segment 3-digit red LED * Control output NPN open-collector 100 mA max. (30 V max.), Residual voltage 1 V max. * PNP open-collector 100mA max. (26.4V max.), Residual voltage 1 V max. * Protective circuit Reversed polarity protection, Overcurrent protection, Surge absorber * Power supply 12 to 24 VDC ±10%, Ripple (P-P) 10% max. * Ambient light Incandescent lamp: 5000 lux max., Sunlight: 20000 lux max * Ambient temperature -20 to +55°C (-4 to 158°F), No freezing * Relative humidity 35 to 85%, No condensation * Vibration 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours respectively * Shock 1000 m/s2 in X, Y and Z directions, six times each * Housing material Glass-fiber reinforced resin THANK YOU AND GOOD LUCK !!!!.LISA... (We do not proofread any ads submitted by members) |
