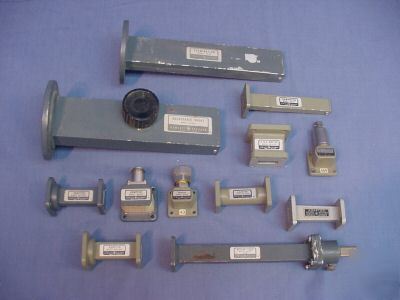

* 1 Each HP P424A Crystal Detector * 1 Each HP X281A RF Adapter * 1 Each HP P281B RF Adapter * 1 Each HP P910A Termination Dummy Load * 1 Each HP P914A Moving Dummy Load * 1 Each HP J910A Termination Dummy Load * 1 Each HP G920A Adjustable Short * 1 Each HP HX292B H to X Adapter PLEASE NOTE: These items are used, and they are in good condition. They show some paint wear from normal lab use. 292A/B Waveguide to Waveguide Adapters 292A, B waveguide-to-waveguide adapters connect two different waveguide sizes which have overlapping frequency ranges. The 292A consists of a short, tapered section waveguide. The 292B is broached waveguide with a step transition between waveguide sizes. 424A Series Waveguide Detectors The 424A family of crystal detectors combine high sensitivity with flat frequency response and low SWR to provide waveguide band coverage from 2.6 to 40 GHz. For reflectometer applications, in which both flat frequency response and square-law characteristics are important, these models can be supplied as matched pairs and an optimum square-law 281A/B Coax to Waveguide Adapters HP 281A, B adapters transform waveguide transmission line into 50-ohm coaxial line. Power can be transmitted in either direction, and each adapter covers the full frequency range of its waveguide Model 910 is designed for terminating waveguide systems operating at low average powers with a peak power of 1 kW. The loads are carefully designed to absorb virtually all of the applied power and assure a low SWR. They may be used wherever a matched load is required, as in the measurements of reflection, discontinuities, or obstacles in waveguide systems. They are also for use with directional couplers or Mechanically, Model 910 consists of a waveguide section terminated in tapered lossy material which absorbs power in the waveguide. Careful design results in minimum reflection over the entire waveguide band. Model 914 Moving Load consists of a section of waveguide in which is mounted a sliding, tapered, low-reflection load. A plunger controls the position of the load, moving it at least one-half wavelength at the lowest waveguide frequency. Thus the phase of the residual load reflection may be reversed so that this reflection can be separated from the other small reflections in the waveguide system. All bands have precision cover flanges which mate with other precision flanges or with choke flanges. domestic carrier and Federal Express is our international carrier. International If your items as received are not as described, please let us know and we will item pictured. If the description and/or pictures do not accurately depict the item received, please contact us. We cannot fix what we do not know about. Unless it is pictured it is not included. We offer no warranties either expressed or implied. personal checks. Please note that when paying with any type of check, your order All items won by Florida residents will be subject to 7% sales tax. If you are a reseller, you can e-mail or fax your current reseller certificate to (***) 330-3838 to waive sales Items sold with a 7 day right of return. If an item is sold with a 7 day return privilege, we must be notified within 7 days from the date of delivery. These items can be returned for any reason within the 7 day right of return period (in number. To obtain an RMA, please contact us within your 7 days, after the initial delivery If you have any questions feel free to e-mail us and we will do our best to respond, however, no technical support will be provided by the seller. All statements regarding products and their configuration are made to the best of our ability, and with the assumption (We do not proofread any ads submitted by members) |
