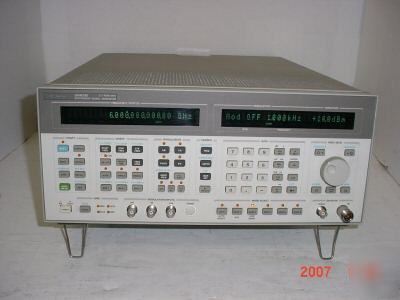

HP/Agilent 8665B Signal Generator with options 001 and 004 The Agilent 8665B signal generator is suited for basic receiver testing up to 6 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 20 MHz are suitable for many applications such as high-speed digital communications. The internal modulation source generates sine, square, triangle or sawtooth waveforms. For applications demanding the lowest RF leakage, Option 010 provides increased RF shielding. * <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004 * <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers * AM, FM, and optional pulse modulation * 0.01 Hz frequency resolution This unit has the following options: * Option 001 = High Stability Timebase * Option 004 = Low-Noise Option This item includes a CD copy of Manual, and Power Cord * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (We do not proofread any ads submitted by members) |
Mindy-Hodges@desmoines-classifieds.com (Mindy Hodges) for more information. Your emails will be instantly forwarded to the poster's private address.
