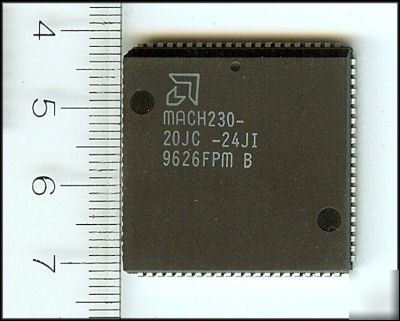

Now over 1,400 items in our Store! These parts are pulled from working boards. Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY. High-Density EE CMOS Programmable Logic PD Commercial 18 ns tPD Industrial * 128 Flip-flops; 4 clock choices * 8 “PAL26V16†blocks with buried macrocells * Pin-compatible with MACH130, MACH131, MACH231, and MACH435 the high-performance EE CMOS MACH 2 device family. This device has approximately twelve times the logic macrocell capability of the popular PAL22V10 without loss of speed. The MACH230 consists of eight PAL blocks interconnected by a programmable switch matrix. The switch matrix connects the PAL blocks to each other and to all input pins, providing a high degree of connectivity between the fully-connected PAL blocks. This allows designs to be placed and routed efficiently. The MACH230 has dedicated buried macrocells which, in addition to the capabilities of the output macrocell, also provide input registers for use in synchronizing signals and reducing setup time requirements. for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (We do not proofread any ads submitted by members) |
