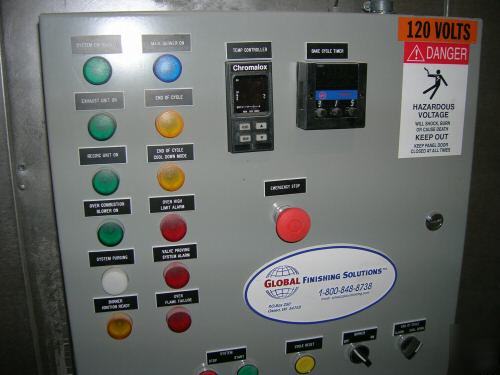

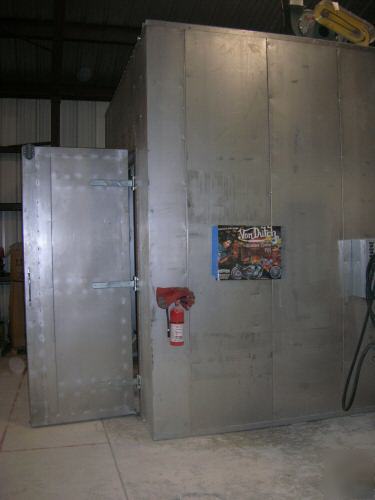

All Global Finishing Solutions Batch Process Oven High ratio turndown Burner manufactured by Eclipse Burner features automatic push button electric ignition And a proportioning temp controller GFS electric control panel which is CUL 508 Flame Listed Control Panel NEMA-1 enclosure and contains square-D components 208/230/480 volt, 3 phase, 3 wire, 60 hz service Includes all of the following features: Motor starter with inline fuse protection Main un-fused disconnect switch IEC type on/off switches and light indicators Batch Timer that allows for uniform timing of batch operation Digital Process Temperature Controller with Digital read out of operating temp Includes a power exhauster, which is a fan properly sized and designed to move all contaminated air from the work area Internal dimensions: 8’ W x 8’ H x 8’ L External dimensions: 12’ 10†W x 11’ 8†H x 14’ 3†L Operating temperatures: 300 degrees F to 500 degrees F Burner: Max. BTU: 1,000,000 Operating BTU: 1,000,000 Recirculating Fan: Size: 18†7.5HP Motor 7,000 SCFM Exhaust Fan: 12â€, 1HP motor, 1,000 SCFM (We do not proofread any ads submitted by members) |
