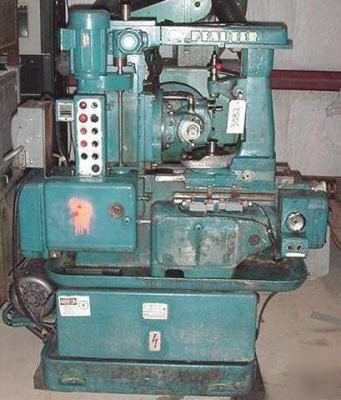

New 1969, Serial No. 22901, Model RS00S Suitable For The Hobbing Of Spur & Helical Gears Up To 10" (250mm) Diameter. Outboard Support Column w/Lever Adjustable Tie-Bar Support For Main Column/Outboard Assorted Hob Arbors - 1 Cabinet Change Gears Climb & Conventional Hobbing Capability Full Completment Of Electrics (Motors/Controls) Misc. Wrenches, Spanners, Operators Tools Operator's Manual, Part List, Wiring Diagram w/o Outboard Support................... 10"/(250mm) w/Outboard Support..................... 8"/(200mm) Maximum Diametral Pitch In Steel (MODULE) Up To 10"(250mm) Diameter.............. 10 DP/(2,5 MODULE) Up To 6"(150mm) Diameter............... 7.5 DP/(3,5 MODULE) Maximum Face Width (Spur Gears)........ 6.5"/(160mm) Minimum Number Of Teeth Hobbed......... 6 Maximum Helix Angle.................... 45 DEGREES Diameter Of Work Table................. 6"/(150mm) Work Table Bore Diameter............... 2-1/8"/(55mm) Minimum Center Distance Hob & Work..... 1/2"/(15mm) Maximum Center Distance Hob & Work..... 6-1/2"/(165mm) Maximum Diameter Hob Utilized.......... 3-1/8"/(80mm) Maximum Hob Length..................... 3-3/8"/(85mm) Maximum Axial Shift/Travel Hob......... 1-1/2"/(40mm) Hob Speed Range (RPMs)................. 70 To 224 RPM Electrical System Running.............. 440 VOLTS Approx. Net Weight..................... 2,250 LBS Overall Dimensions..................... 57"x 27"x 68" PRICE: F.O.B. CINCINNATI OH........... $12,500.00 All machines/equipment subject to prior sale. (We do not proofread any ads submitted by members) |
