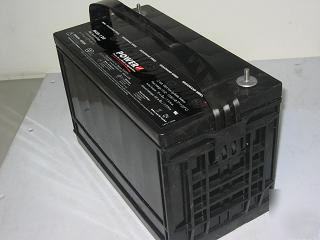

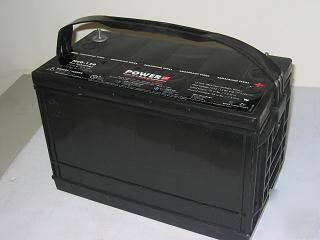

You are purchasing a sealed non-spillable battery made by Power Battery Company Inc. This battery is an AGM (Absorbed Glass Mat) battery that has been topped off with gel. A Unique design, this has a long cycle life. This is a perfect non spillable battery for any sump pump system. Comes with a handle for easy traqnsport and installation. This is a brand new battery never used. This battery is made by Power Battery Company in the USA to strict requirements and quality control checks. * AH Capacity @20 hours: 110, @ 8 hours: 96, @ 100 hours: 130 * Maximum discharge current: 700 amps * Short circuit current: 4182 amps * Impendance @ 77 Degrees F (25 degrees C): 3.30 milliohms * Electrolyte (Specific Gravity): 1.300 * Operating temperature range: 40 degrees C/-40 degreesF to 60 degrees C/ 140 degrees F * Charging voltage / current: 13.62 to 13.80 volts, constant voltage to a maximum current of 12 amps * Storage time from a fully charges condition: 6 Months at 25 degrees C (77 degrees F) for each 9 degree C/ 15 degreeF rise, reduce the storage time by half * AC Ripple from charging source: 1.5% peak to peak of float 13.5" Long 6.8" Wide x 9.2" High to the top of the terminal * Thick reinforced end wall to prevent bulging * Ten year design life in stanby float service. * A recognized component of U.L. * Non-spillable valve regulated lead acid battery (VRLA) design. * Advanced AGM/Gel Hybrid technology. Provides deep cycle capability throughout the life of the battery. * Operates at a low internal pressure. * Never needs watering, minimal maintenance. * 99.7% pure lead calcium grids. * Shock absorbent thick wall polypropylene cases. * Cold forged non-porous terminal bushings eliminate post leakage. * Thermally welded cover to case bond, eliminates both acid and electrical leaks. * Over-sized, through the partition inter-cell welds provide low resistance connections with minimal power loss. * Each cell has a low pressure safety release one way venting system recognized per U.L. 924. * Measured high vacuum acid fill reduces electrical variability between cells. * 100% recyclable materials, MSDS. * Operating temperature range: -40ºC/-40ºF to 60ºC/140ºF * Charging voltage / current: 2.27 to 2.30 volts per cell, constant voltage at a maximum current of C/4 amps. * Temperature compensation: Apply for temperature range of 0ºC/32ºF to 40ºC/104ºF. Subtract 3 mV/ºC/cell or 1.7 mV/ºF/cell, above 25ºC/77ºF. Add 3 mV/ºC/cell or 1.7 mV/ºF/cell, below 25ºC/77ºF. * Storage time from a fully charged condition: 6 months at 25ºC/77ºF. For each 9ºC/15ºF rise, reduce the storage time by half * Surface transport. Classified as non-hazardous material as relates to DOT-CFR Title 49 part 171-189. * Marine transport. Classified as non-hazardousmaterial as per IMDG amendment 27. * Air transport. Complies with IATA / ICAO, special provision A67. Cycle Life vs Depth of Discharge (DOD): (We do not proofread any ads submitted by members) |
