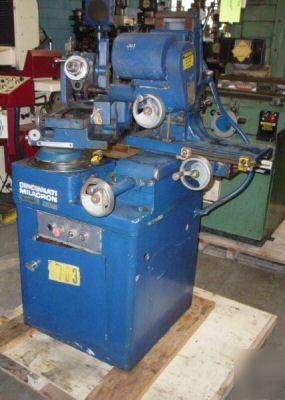

CINCINNATI-MILACRON "MONOSET" TOOL & CUTTER GRINDER New 1976, Serial No 3152A0175-0020, Model MT, 1/4 HP Motorized Workhead, Bijur Lubrication System Large Compliment of Tooling Including Collets, Chuck, Wheel Mounts, etc. Collet Work Diameter, Minimum.......... .125" Collet Work Diameter, Maximum.......... 1.25" Swing Over Main Slide, Maximum......... 12" Between Spindle & Tailstock Center..... 6" Workhead, Main Slide Travel............ 5.75" Workhead, Offset Slide Travel, Total... 5.25" Horizontal Plane, Turntable............ 235-DEGREES Vertical Plane, Above Center........... 40-DEGREES Vertical Plane, Below Center........... 40-DEGREES Wheelhead, Longitudinal Slide Travel... 6" Wheelhead, Cross Slide Travel.......... 7.50" Wheelhead, Vertical Slide Travel, Total 9.50" Wheelhead Vertical Travel Above Center. 4.25" Wheelhead Vertical Travel Below Center. 4.50" Grinding Wheel Diameter, Maximum....... 4" (3) Wheelhead, Spindle Speeds, Range... 4000 to 8000 RPM Workhead, Spindle Speed................ 436 RPM Workhead Motor, Horsepower............. 1/4 HP Wheelhead Motor, Horsepower............ 1/2 HP Floor Space Required, W x D............ 25" x 26" Weight, Approximately.................. 1525 LBS. PRICE: F.O.B. OUR WAREHOUSE............ $9,950.00 All machines/equipment subject to prior sale. (We do not proofread any ads submitted by members) |
