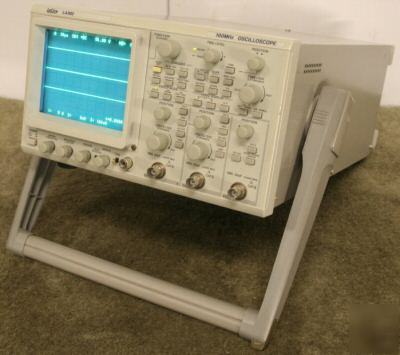

LeCroy LA302 100MHz 3 Channel Oscilloscope NICE * Sensitivity of 2 mV/div max * Max Sweep Speed of 1 ns/div * Full TV Trigger with Field & Line Selection * Save and Recall Panel Settings With three channels and up to 100 MHz bandwidth, the LA302 analog oscilloscope offers a high level of performance for relatively low cost. Analog oscilloscopes offer unique benefits in solving specific measurement problems. The analog display provides important clues about the relative frequency content of signals mixed together or the occurrence of low rep-rate events on repetitive signals. The analog display effectively displays these "grey scaling" and "persistence" effects. The ultrafast display update rate lets you see how the waveforms behave in real time. The LA302 is a perfect instrument for service and educational applications. Equipped with extensive TV triggering, both scopes are excellent for video testing. The standard multipurpose trigger, five-digit counter, and comprehensive cursors make the LA302 a truly universal oscilloscope. Convenient fine-adjustment mode Pressing FINE and turning the knob enables slow scrolling of waveforms a function comparable to a digital storage scope's roll mode. Line triggering provided for AC line measurement AC line-related measurement of various frequencies can be obtained. CH3 provides three sensitivity levels for a wider range of measurements. Input with probe sensor function When using a probe, the range display is automatically calibrated by detecting 10:1 or 100:1 with the probe sensor. CRT: 6-inch rectangular, internal graticule (8 x 10 div with scale illumination), meshless CRT Accelerating voltage: Nominal 16 kV Mode: CH1, CH2, CH3, ADD, ALT, CHOP 5 mV/div - 5 V/div, DC 100 MHz; 2 mV/div, DC 50 MHz Signal Delay Time: At least 30 ns Input RC Direct: 1 MOhm ±1.5% // 20 pF ±2 pF Input RC with Probe: 10 MOhm ±3% // 12.5 pF ±2 pF Max. Input: Direct, ±400 V max, with 10:1 probe, ±600 V max Polarity Switching: Possible only for CH2 Sensitivity: 2 mV/div - 5 V/div, 11 step (1-2-5); 2 mV/div - 12.5 V/div (with vernier) Input Coupling: AC, DC, GND (The lowest usable frequency is 4 Hz with AC coupling.) Sensitivity: 50 mV/div, 100 mV/div, 500 mV/div, ±2% Coupling: AC, DC, HF-REJ, LF-REJ Coupling: AC, DC, HF-REJ, LF-REJ ODD, EVEN, BOTH, line selection, TV system X-axis: Sensitivity, same as CH1; accuracy, ±3%; bandwidth, DC - 2 MHz Horizontal Display A, ALT, B, X-Y Sweep time: Fastest range, 20 ns/div; slowest range, 500 ms/div Sweep time: Fastest range, 20 ns/div; slowest range, 5 ms/div; accuracy A/B, ±2% Hold-off Time: Variable (up to sweep length or longer) Waveform: Square-wave, 1 kHz ±0.1%, 0.6 Vp-p ±1% Readout: Attenuator range, ADD, UNCAL, AC/DC/GND, vertical mode, CH2 polarity, A/B sweep range, x10 MAG, UNCAL, horizontal display mode, hold-off, trigger coupling, trigger source, trig slope, TV-field, TV-line, TV-system (NTSC, PAL/SECAM [HDTV in LA303]) Division Calculation by DeltaT: 1/DeltaT Display digits: 5 digits, decimal 2 Hz - 100 MHz (option six digit) * FOR YOUR "PEACE OF MIND" and CONVIENENCE any TESTED and FUNCTIONAL TEST EQUIPMENT WE LIST CAN BE CALIBRATED for an ADDITIONAL CHARGE by AST GLOBAL'S OWN IN HOUSE CALIBRATION LAB. Note: Email or call for Calibration Quote. * Unit has been THOROUGHLY CHECKED by our CERTIFIED LAB TECHNICIAN and is FULLY FUNCTIONAL. * VERY GOOD COSMETIC CONDITION. * This Unit Comes with a 5 Day Right of Return. * Over Size 1 - Please see explanation below. * Power cords, accessories, probes, manuals, software, etc. are not included unless specifically stated. If after reading the entire text, the item description, and clicking on our links and your question still is not answered, please use the Ask Seller A Question link above. Using our regular email address will cause delays in answering your question. * ACCESSORIES: Power cords, accessories, probes, manuals, software, etc. are NOT included unless specifically stated. Money orders, cashier checks, bank drafts Wire transfers (please add a $15.00 banking fee) Postal international money orders (please add a $7.50 banking fee) Wire transfers (please add a $15.00 banking fee) Postal international money orders (please add a $7.50 banking fee) Wire transfers (please add a $15.00 banking fee) RETURNS, EXCHANGES AND WARRANTY: Please feel free to call us toll free (within Continental US) at 1-(***)-216-7159 or (outside Continental US) at 1-(***)-337-6674. Our regular business hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. EST. (We do not proofread any ads submitted by members) |
