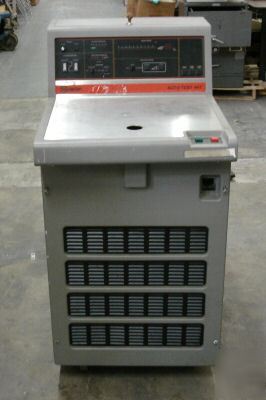

Models 947 & 948 High-Production Leak Detectors The Varian, Inc. Models 947 & 948 Leak Detectors are specifically designed for high-productivity testing. By using two primary pumps and high-conductance valve manifolds, these leak detectors deliver very fast cycle times. Using two primary pumps also allows for gross-leak testing (up to atmospheric pressure if the factory-installed gross-leak option is installed). They can be set to enable single-button pass/fail testing and fully automatic tuning and calibration. The Contra-Flow™ vacuum system design in these leak detectors uses a valve manifold that minimizes cycle times and maximizes reliability and sensitivity without needing liquid nitrogen. Liquid nitrogen can be used in the Model 948 Leak Detector, however, to increase the pumping speed for water vapor and other condensable gases, shortening cycle times even further. These leak detectors can be equipped with oil-sealed rotary-vane primary pumps or Varian TriScroll® oil-free pumps for extra cleanliness. You also may choose between a Varian, Inc. Turbo-V70 high-vacuum pump or the Turbo-V70D MacroTorr pump for extra sensitivity. Both of the turbo pumps are air-cooled, maintenance-free, fast-starting, and extra-clean. * Cabinet configuration with a stainless-steel work surface facilitates high-volume testing * Fully automated tuning, calibration, and zeroing reduces liklihood of operator error * Integrated internal calibration standard (traceable to NIST) * Valves are vacuum-actuated, needing no compressed air. * Highly reliable valves tested to more than one million cycles * Single-switch startup and shutdown * Fully protected from operator error and power failure * Remote control and data collection through analog, parallel I/O, and RS-232 interfaces. USED, UNTESTED SURPLUS REMOVED FROM SEMIFAB MFG/TEST FACILITY. COMES AS PICTURED. PLEASE FEEL FREE TO ASK QUESTIONS. UNIT WILL BE PALLETIZED AND READY FOR DOCK-HIGH PICKUP FROM AREA CODE 75074 we reserve the right to re-list the item if not paid after 7 days. IF YOU ARE IN ALASKA OR HAWAII PLEASE BE PREPARED TO PAY A SLIGHTLY Seller is not responsible for uninsured items. Texas residents add 8.25% Sales Tax. This Item is represented as accurately as possible. (We do not proofread any ads submitted by members) |
