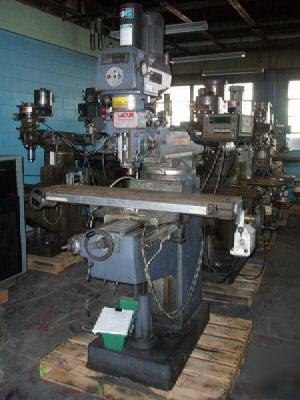

#FTV-2S LAGUN VERTICAL MILL w/DIGITAL READOUTS Serial No SE21068, Model FTV-2S 3 HP Variable Speed Spindle Motor Table Dimensions (Overall), W x L....... 10" x 50" Table Longitudinal Travel (X-Axis)...... 30" Saddle Cross Travel (Y-Axis)............ 16" Knee Vertical Travel (Z-Axis)........... 16" Quill Travel............................ 5" Ram Travel.............................. 22.19" Spindle-Center To Body, Minimum......... 5.31" Spindle-Center To Body, Maximum......... 30.5" Spindle-Nose To Table, Maximum.......... 18.5" Quill, Diameter......................... 3.375" Spindle Speeds, Range................... 54 to 4500 RPM Spindle Motor, Horsepower/RPM........... 3 HP/1730 RPM Electrical System....................... 220-440/3/60 Floor Space Required, W x D............. 5'3" x 4'11" Overall Height.......................... 5'10" Weight, Approximately................... 2850 LBS PRICE: F.O.B. OUR WAREHOUSE............ $5,950.00 All machines/equipment subject to prior sale. (We do not proofread any ads submitted by members) |
r.randall@desmoines-classifieds.com (Rosanne Randall) for more information. Your emails will be instantly forwarded to the poster's private address.
