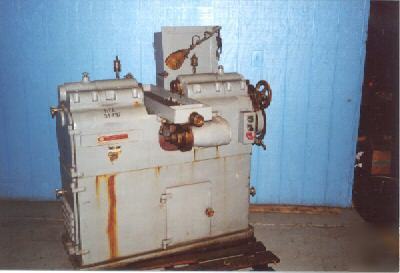

#M80 TOWNSEND DUPLEX SPLINE MILL New 1980, Serial No 70168, Model M-80 Table Dimensions Overall, L x W........ 9.25" x 38.18 Table Working Surface, L x W........... 5.25" x 30" Cutting Length, Plus Cutter Diameter... 4" Cutting Depth, Both Spindles........... 4" Cutting Depth, One Spindle............. 2" Independent Spindle Adjustment......... 1.5" Distance Between Spindles, Maximum..... 9.43" Distance Between Spindles, Minimum..... 2.43" Spindle Speeds, Range.................. 730 to 2835 RPM Spindle Feeds, Range................... .003" to .020" Table Strokes, Range................... 2.5 to 67 SPM Floor Space Overall, L x W............. 4'6" x 2'5" Weight Approximately................... 2225 LBS NOTE: This Machine Appears To Be In Very Good Condition As Taken From Governmnet Stand-By Storage. This Machine Is Designed To Use Cutters Of Small Diameter For The Efficient And Accurate Cutting Of Splines Or Keyways, And Various Other Types Of Work For Which The Machine Is Adapted. Two Splines Or Surfaces May Be Milled Simultaneously With Its Coaxially Arranged Spindles, Or One Spindle Only May Be PRICE: F.O.B. OUR WAREHOUSE............ $3,950.00 All machines/equipment subject to prior sale. (We do not proofread any ads submitted by members) |
