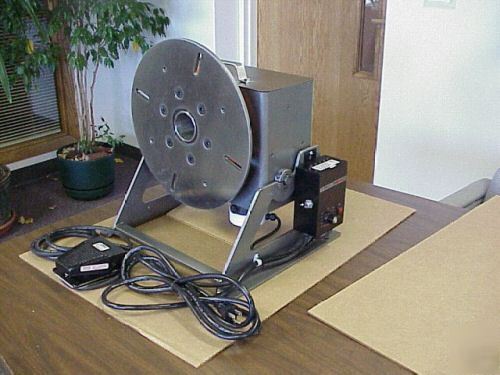

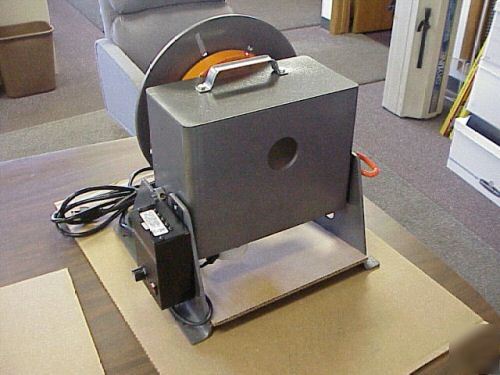

New welding positioner 2" hole big table, cnc face plt.


What is for sale: New welding positioner 2" hole big table, cnc face plt.
This positioner is different in many good ways, here are some of our HUGE differences.
1. Tubular construction, this aligns the machined secondary gearing for long service.
2. Total 360 degree enclosure of the precision secondary gearing, this keeps grinding dust, weld spatter and fingers out of the pinch points.
3. Twin bearings, not one but TWO precision SEALED ball bearings, that distribute the load and still deliver smooth rotation.
4. We use our own "Constant Current Contact", for the ground connection. This spring loaded brass ground, follows the back side of the table, keeping the welding current out of the precision bearings.
5. Cast IRON foot pedal, not thin sheet metal.
6. Precision machined steel secondary gearing, no exposed belts or chains.
Here is the information sheet below.
Required power…………………. 115 VOLT AC POWER
Weight capacity……………….. …150 # balanced/centered vertical,
50 # balanced at 90 degrees, 2” from C/L
Table…………………………13” diameter with 3/8" slots, 5/16" thick, steel
Table tilt…………………… 0, 45 and 90 degrees pin lock system
Motor…………………………90 volt PM DC motor 1/12 HP
Control………………………..SCR H.F. immune control
Power on light, internal fused
Forward/Reverse toggle on Control
Speed ranges offered……………… Model #WP-1-8, 0-8 RPM 56 lbs. inch torque
Ground current……………………..200 Amps DC direct table contact
OVERSIZE 13” SLOTTED STEEL TOP
TWIN SEALED MAIN BALL BEARINGS
Building of quality welding equipment since 1986
