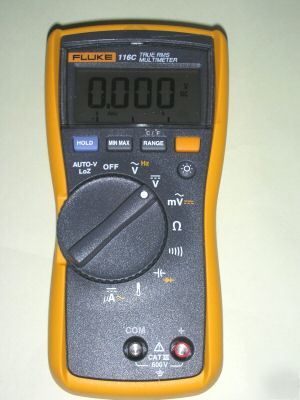

Fluke 116C HVAC Multimeter with Temperature and Microamps Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116c was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors. * Built-in thermometer for HVAC applications * Microamps to test flame sensors * Low input impedance: helps prevent false readings due to ghost voltage * Large white LED backlight to work in poorly lit areas * Resistance, continuity, frequency and capacitance * Min/Max/Average with elapsed time to record signal fluctuations * Compact ergonomic design for one-handed operation * Compatible with optional magnetic hanger (ToolPak™) * CAT III 600 V safety rated Maximum voltage between any terminal and earth ground 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 6,000 counts, updates 4 per second 33 segments, updates 32 per second 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 400 hours typical, without backlight ± ([% of reading] + [counts]): 2.0% + 3 2.0 % + 3 (dc, 45 Hz to 500 Hz) 1.0 % + 3 (dc, 45 Hz to 500 Hz) 1.0 % + 3 (dc, 45 Hz to 500 Hz) Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer. Temperature (Type-K thermocouple) AC μamps true-rms (45 Hz to 1k Hz) 1) All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. 2) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage, when frequency is dc coupled, 45 HZ to 5 kHz. Mechanical & General Specifications (We do not proofread any ads submitted by members) |
