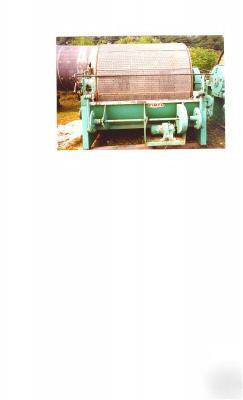

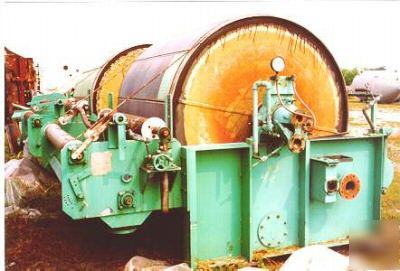

EIMCO VACUUM DRUM FILTER, 6' DIAMETER X 6' LONG DRUM. FILTER HAS BEEN REBUILT AND NOT REUSED SINCE REBUILDING. DRUM SHELL AND HEADS ARE 3/16" MILD STEEL PLATE. DRUM SHELL, HEADS, TRUNIONS, AGITATOR AND INSIDE OF TANK ARE COVERED WITH 3/16" RUBBER. DRUM COVER IS PANEL TYPE 802 R.F. POLYETHYLENE. DRAINAGE GRIDS ARE MOULDED RUBBER, SNAP IN TYPE WITH DIVISION STRIPS AND END BARS OF 304 STAINLESS STEEL. INTERNAL PIPING IS SCHEDULE 80 PVC. LENGTH OF FILTER IS 9'-11.5" OUT TO VACUUM CONNECTIONS; HEIGHT IS 6'-10" AND WIDTH IS 8'-1-3/8" AS ON ORIGINAL DRAWING. WITH ADDITION OF COMLINE SANDERSON CAKE DISCHARGE DEVICE UNIT IS WIDER THAN ORIGINAL 8'1" DIMENSION. UNIT HAS PIN TYPE RAKE AGITATOR. DRAWINGS AND COMPLETE PARTS LIST ARE INCLUDED WITH FILTER. UNIT HAS 1 HP FILTER DRIVE MOTOR AND 75:1 FILTER DRIVE WORM GEAR. AGITATOR DRIVE MOTOR IS 1.5 HP AND AGITATOR SPEED IS 16 CYCLES PER MINUTE. COMPLETE WITH 6'-4" SCRAPER APRON. FILTER ORIGINALLY WAS SUPPLIED WITH A NASH VACUUM PUMP SIZE H-6 RATED AT 260 CFM @ 20" HG @ 246 RPM WITH 15 HP MOTOR. PUMP IS NOT WITH FILTER AT PRESENT TIME. WE DO HAVE A SIMILAR NASH VACUUM PUMP THAT IS AVAILABLE AT EXTRA COST IF DESIRED. ORIGINAL BLOWER FOR CAKE DISCHARGE WAS A ROOTS BLOWER RATED AT 45 CFM AT 2 PSI . BLOWER NOT WITH FILTER AT PRESENT TIME. BLOWERS AVAILABLE UPON REQUEST. (We do not proofread any ads submitted by members) |
t-scott@desmoines-classifieds.com (Therese Scott) for more information. Your emails will be instantly forwarded to the poster's private address.
