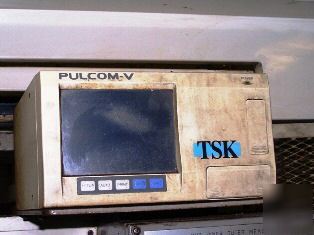

Maximum swing over saddle:..................17.71" Dia Maximum ' Z' Travel: main spindle...........12.60" Maximum truning dia:........................8.260" dia Maximum turning length:.....................5.12" Number of controlled axis:.................(4) Spindle Bore - hole thru spindle: Main spindle:2.44" Dia Dual Turret Design: upper / lower upper: 2-12 stations / 2- Turret Tooling capacity: OD & ID Turrets 1-1/4" dia shank Cutting feed rates 0.0001: - 40.0" per rev High Pressure Flood Coolant system Machine Gross Weight - approximately 8400 # Floor Space Dimensions: 80" x 75" Full way covers (2) No. A2-6 (8") Hydraulic Power Chucks Flood coolant system - coolant thru turret Rear Chip Conveyor (2) Model OGL-5 Gantry type Loader units 20 station Flex Link conveyor output unit Chip removal conveyor system Pulcom-V Auto Gaging system (note - this device is not working Equipped with an OSP 7000L series CNC Control System -Full 4-Axis Linear and circular interprolation - Full CRT w/multi axis display - MDI system, Absolute, Cutter Comp. Conversational Type CNC - IGF on-line programming, Auto load ELECTRICS: 10/7 HP VAC Main Spindle drives - Axial drive: Upper: Lower: 1.3 HP (X) / 2.7 HP (Z) - Coolant (1/3 HP) - 230/460 VAC 3 (We do not proofread any ads submitted by members) |
