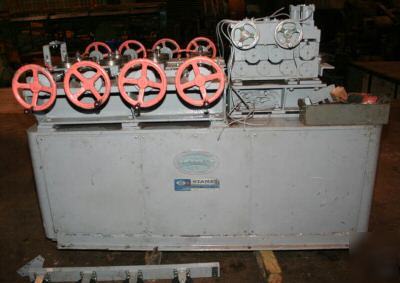

Photo Sharing and Video Hosting at Photobucket 3/16" STANAT EDGER: STOCK # 52100 SERIAL .................... 103568 CAPACITY ROUND EDGE ....... 3/16" DEBURRED EDGE ............. 1/4" MATERIAL WIDTH ............ 7-1/2" (WITH 5" DIA. EDGING ROLLS) SPEED ..................... 70 FPM APPROX.(CAN BE CHANGED TO HIGHER SPEED) ADJUSTABLE IN-FEED ROLLER EDGE GUIDES TWIN AIR CYLINDER VERTICAL ADJUSTMENT TO 4" DIAMETER GEAR DRIVEN PINCH ROLLS RUNNING IN ANTI FRICTION BEARINGS (5) 2-3/4" DIAMETER ROLL STRAIGHTENER W/GEAR DRIVEN ROLLS RUNNING IN ANTI FRICTION BEARINGS W/TWIN PARALLEL VERTICAL ADJUSTMENT TO THE TOP ROLL BANK W/DIGITAL COUNTERS FOR ROLL POSITION AND EXIT ADJUSTABLE (8) 5" DIAMETER DRIVEN EDGING ROLLS (2-3/16" GROOVES PER ROLL) W/INDIVIDUAL HAND WHEEL SCREW ADJUSTMENT TO ALL ROLLS FOR WIDTH W/DIGITAL POSITION COUNTERS AND HAND LEVER SLIDE LOCKS. CONTOURED STRIP GUIDES ADJUSTABLE BETWEEN ALL ROLLS SEALED MAIN GEAR BOX RUNNING IN OIL BATH W/8 OUTPUT SHAFTS & "U" JOINTS DRIVE MOTOR ............... 20 HORSEPOWER CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! (We do not proofread any ads submitted by members) |
