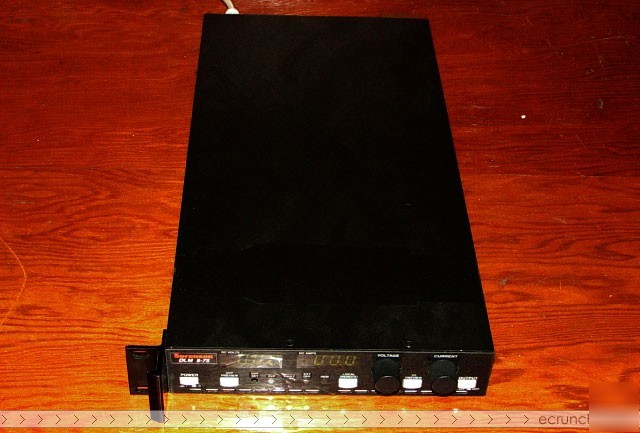

Information - Questions? Call (***)-253-6114 Ask for Chip or Trip The DLM 600W Series of programmable power supplies is designed to provide continuously variable output voltage and current for a broad range of applications in a 1U (1.75 inches) high, half-rack (8.5 inch) wide chassis. This series incorporates advanced Zero Voltage Switching (ZVS) technology, resulting in low output noise and high efficiency. This unit has the following specifications: * Front Panel Controls: Knobs to control output voltage and current settings. Power on/off switch, output on/off switch, and local/remote switch. Voltage/current and overvoltage push buttons allow preview of the programmed settings at any time. Overvoltage limit is adjusted with a trimmer potentiometer accessible through the front panel * Displays and Indicators: Two 3 1/2 digit LED displays: one for output voltage and OVP, the other for output current. LEDs indicate voltage and current modes, overvoltage protection, fault, external off, remote, and output on * Remote Sense: The maximum allowed load line drop with remote sensing is 1V total * Remote Programming: Voltage, current (0-100%) and OVP (5-110%) of full scale can be programmed by selectable 0-5 VDC, 0-10 VDC, or 0-5 kW * Remote Monitoring: Voltage or current can be monitored with user-selectable ranges, scaled to 0-5 VDC or 0-10 VDC * Operational Features: Master/slave parallel operation, up to 4 units of the same model can be connected in parallel, with active current sharing control. Series operation, multiple units of the same model can be connected in series, limited by 300 Vpk between either output terminal and chassis * Dimensions: 1U or 1.75" (44 mm) H x 8.5" (216 mm) W x 17" (432 mm) D This unit has the following options installed: * M9G = SCPI compatible IEEE-488.2 and RS 232 interfaces A sticker on the unit indicates "Warranty Expires Jan. 2009", I am not sure if this unit still has a manufacturer's warranty, but if it does and it passes, then you would have the remaining warranty. This item is in excellent condition, working perfectly, and comes with a 14 Day Guarantee Against DOA. If you have any questions, e-mail me. (We do not proofread any ads submitted by members) |
