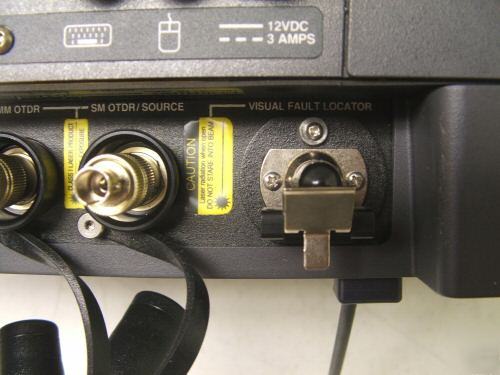

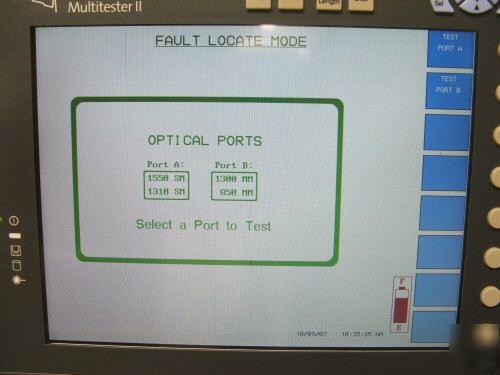

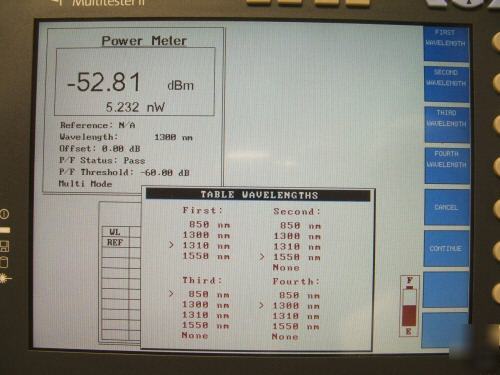

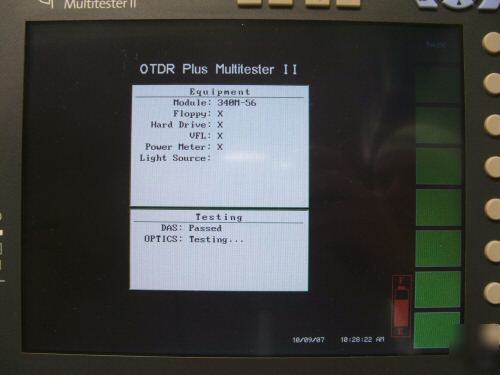

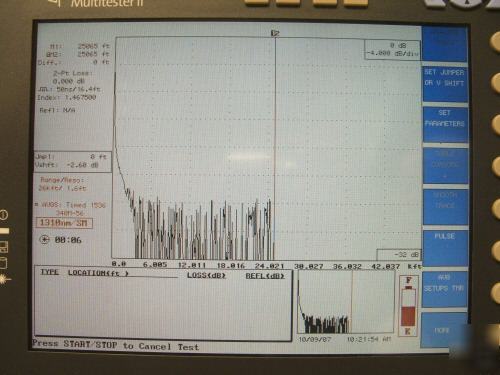

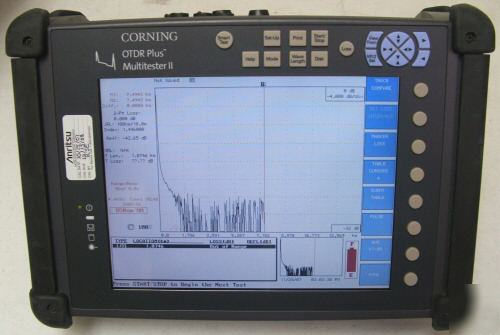

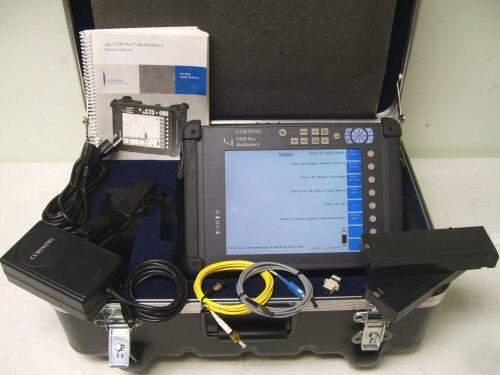

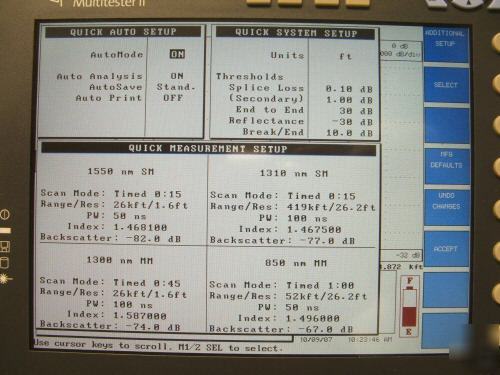

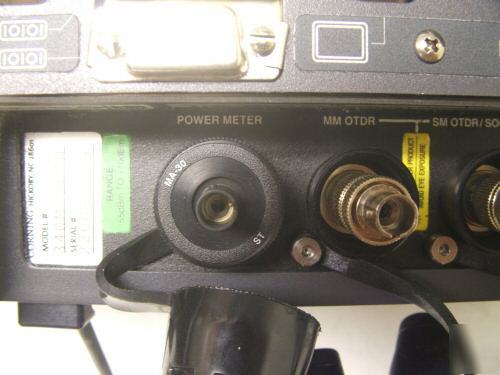

( ON SALE, LIMITED TIME ONLY!!) Siecor Corning 340 OTDR Plus Multitester II With 340M-5610 Fiber Module It is loaded with all major options! This OTDR Retailed new for around $30,000.00. Included Options with the 340-OTDR: * Four NEW Battery Packs & New Battery Pack Charger. Included Accessories Listed at the Bottom. This Unit is Currently In Transit From Calibration. Be sure to add us to your Favorites list!. Warranty: 30 Day Exchange Warranty Product Overview The Model 340 OTDR Plus Multitester II offers true multi-testing capability that features field-installable single-mode, multimode and quad OTDR modules,visual fault locator, as well as optional built-in power meter and laser source. The standard unit provides internal solid-state memory for 125 traces and a floppy disk drive.An optional hard drive is also offered to allow mass data storage and speeds testing by eliminating the need to constantly exchange floppy disks in the standard drive. The 340 OTDR offers a large variety of high-performance multimode and single-mode modules featuring a superior single-mode unit with 46 dB dynamic range. SoftView Emulation Software provides desktop analysis and quality documentation capability. Center Wavelength (±20 nm) 850nm/1300 nm & 1310nm/1550nm Dynamic Range 23/25 dB / 22/21 dB Attenuation Deadzone 8/9 m / 11/12 m Universal 2.5 mm Connector Types3 FC, ST® Compatible, SC, D4, Biconic, (Ultra PC standard) DIN 47256, SMA 905/906 (Angle PC available) Diamond HMS-0/HMS-10/HMS-10A, E-2000 Reflective Deadzone (typical) 3 m (multimode) / 3.5 m (single-mode) Pulse width 4 ns to 10 μs (multimode); 10 ns to 30 μs (single-mode) Distance Resolution 0.0001 km; 0.01 meters; 0.001 kft; 1ft; 0.0001 mi Distance Sampling 0.25, 0.5, 1, 2, 4, 8, 16 m (range dependent) Distance Accuracy 0.0025% of distance measurement +/- distance resolution +/- index uncertainty Laser Certification CDRH class 1 requirements (eye safe) 21 CFR 1For dynamic range SNR=1. All measurements are typical and made using FC/SPC @ 25°C. 2Multimode: 62.5 μm with PC polish; single-mode: Ultra PC with Angle PC polish available. 3For MT-RJ, use a hybrid patch cord. Mainframe and General Specifications Display Type 10.4-in Active Matrix Color (TFT) Units of Measure Meters, Feet (selectable) Operating Temperature AC power: 0˚ to 45˚C (32˚ to 122˚F); Battery: 0˚ to 40˚C (32˚ to 104˚F) Storage Temperature -20˚ to +60˚C (-4˚ to 140˚F) Humidity 95% RH maximum, non-condensing Power Supply Battery: 6 hr typical battery life-(2); recharge time: 1.5 to 2 hr; AC: 100-250 V, 47-63 Hz; Autoranging: 12 V DC operation Weight 11.0 lb (4.9 kg) includes battery and module Dimensions 9.5 x 13.5 x 3.75 in (24.1 x 34.3 x 9.5 cm); includes mainframe, 1 module and battery Tone for Fiber Identification 2 kHz Mass Storage Internal Solid-State Memory: up to 125 traces; floppy (included): 1.44 Mb, 3.5-in; hard drive (optional): over 80,000 traces Output Power ≥ -2 dBm (0 dBm max) Transmission CW or 2 Hz (blink) Connector (fixed) FC, SC, or ST® Compatible Laser Certification IEC 825 Class 2, FDA (21CFR), Class 2 Single-mode Laser Source Option Wavelength 1310/1550 nm (same as module) Output Power ≥ -10 dBm, typical Stability (+23°C, 8 hrs) ± 0.2 dB Spectral Width (RMS) ≤ 10 nm, typical Modulation Continuous, 1 kHz and 2 kHz Laser Certification CDRH CLASS 1 21CFR requirements (eye safety) Calibrated Wavelengths 850/1300/1310/1550/1625* nm Optical Meter Range Standard: +10 to -55 dBm (factory-installed) CATV: +20 to -45 dBm, with mf-460 filter Detector Type 2 mm Ge PIN photodiode Resolution 0.01 dBm, 0.01% Watts ± 8% @ +10 to +5 dBm and @ -50 to -55 dBm Linearity ± 0.04 dB, +5 to -55 dBm * Does not apply to all meters. * Siecor OTDR Plus Multitester II * Option: Single Mode 1310nm and 1550nm * Option: Multimode 850nm 1300nm * Option: (VFL) Visual Fault Locator * (1) Single Mode ST To SC Fiber Patch Cable * (1) Single Mode SC To FC Fiber Patch Cable (We do not proofread any ads submitted by members) |
