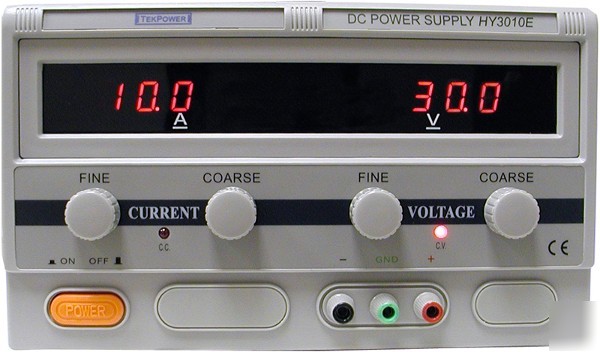

MASTECH HY3010E HQ VARIABLE SWITCHING DC POWER SUPPLY VARIABLE VOLTAGE: 0 TO 30 Volts + VARIABLE CURRENT: 0 TO 10 Amps The HY3010E variable 0 to 30 volts at 0 to 10 AMP DC power supply is of very high quality construction by Mastech. Excellent for regulated power requirements with the variable 0-30 volt 0-10 amp output. Other uses include lab, science projects or any other use where stable voltage up to 30 volts is required. For the variable output the voltage is variable from 0 to 30 volts and the current is also variable from 0 to 10 amps. The digital LED meters display the actual voltage and current within 2 percent. Both the voltage and the amperage are adjustable with COARSE and FINE tuning controls for absolute BEST precision. SPECIFICATIONS FOR THE HY3010E: Power effect: CV<0.01%+1mV, CC<0.2% + 1mA Overload effect: CV<0.01% +3mV, CC<0.2% +3mA Waves and noises: CV<2mV r.m.s, CC <10mA, r.m.s Protection: constant current and short-circuit protection CV≤0.1%+5mV(I>6A) CC≤0.5%+20mA(I>6A) Voltage indication accuracy: LED±1%+2digits, analogue display 2.5% Current indication accuracy: LED±2%+2digits, analogue display 2.5% Load regulation: CV≤0.02%+10mV(I≤6A) CC≤0.5%+10mA(I≤6A) CV≤0.1%+5mV(I>6A) CC≤0.5%+20mA(I>6A) Protection: High current limited. Ripple & Noise: CV≤3mVr.m.s CC≤10mA r.m.s Digital Voltage and current meters built in with Voltage resolution: 2.5% of display reading; 2.5% of Current resolution: display reading Environmental: 0 - 102 F (0 -40 C), relative humidity: <90% (We do not proofread any ads submitted by members) |
